DIY Nanoleaf线条 无焊接（无法控制灯光效果，Arduino）
DIY Nanoleaf Lines NO SOLDERING (Control over effects not available, Arduino)
2024-01-13 19:55:05
使用说明
- 所有模型资源均由用户上传分享，内容来源于网络公开资源
- 侵权投诉：通过抖音私信 @jobsfan 联系我们（需附版权证明），24小时内处理
- 模型将通过邮件发送（5分钟内自动发送），感谢理解带宽压力，超过1小时没收到，请联系我们
关于费用
我们是爱好者共建社区，为维持服务器成本，每个模型收取微量费用（仅覆盖基础开支）。我们承诺最低成本运营，感谢您的支持！
扫码手机访问
抖音私信 @jobsfan
Summary
This project is super Cool! Nanoleaf Lines but at a fraction of the cost. and there is NO SOLDERING involved
Parts List
- BTF-Lighting WS2812B Eco 300LED 5M: US | UK | CA | DE | FR
- Aluminium Led Diffuser Channel Shallow w. Mily Cover: US | UK | CA | DE | FR
- 3D Printed Connector Piece (in Files)
- Nano Gel Tape(Try to find in Hardware Store): US | UK | CA | DE | FR
- Cable Channel (Try to find in Hardware Store): US | UK | CA | DE | FR
- IKEA KUGGIS Cable Box: US | UK | CA | DE | FR
- Arduino Uno R3: US | UK | CA | DE | FR
- 400 tie Point Breadboard MB-102: US | UK | CA | DE | FR
- Dupont Wires Assorted Kit: US | UK | CA | DE | FR
- (OPTIONAL) Hook-up Wires 28AWG: US | UK | CA | DE | FR
- 100uf-1000uf Capacitor: US | UK | CA | DE | FR
- 220-440 ohm Resistor: US | UK | CA | DE | FR
- Terminal Block (ONLY FOR NORMAL SIZE PSU): US | UK | CA | DE | FR
- 5V Power Supply (Amps = LEDs x 0,06)
--------- Normal Size (Up to 10A): US | UK | CA | DE | FR
--------- Full Size (Up to 50A): US | UK | CA | DE | FR - Power Supply Cable
--------- For Normal Size: US | UK | CA | DE | FR
--------- For Full Size: US | UK | CA | DE | FR

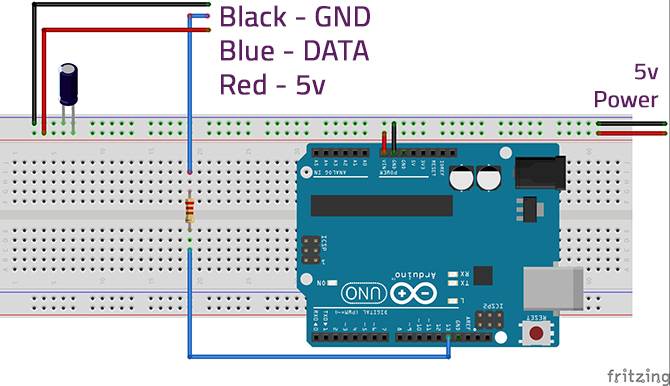

Circuit Setup
Animations
CODE
View in Files
HOW TO SET UP
- Cut your LED Profiles to Size with any Saw
- Click a Connector Piece to a LED Profile and feed the LED Strip through the Connector Piece and repeat until design is done
- Connect components together by looking at Circuit setup and put in cable box
- Install Cable Channels on the wall without Covers
- Connect Hook-Up Wires or M-F Dupont Cables to Extension Cables
- Put Cables in Cable Channel
- Put Nano Gel Tape on Connector Pieces, and Install on the wall
- Connect Night Strip to Hook-up Wires
- Put Cable Channel Covers On
- Plug In Power Cable
- Project Should Light Up
App-controlled version coming very soon
A WLED Version is coming very soon
Tags
License
CC BY
DIY Nanoleaf Lines NO SOLDERING (Control over effects not available, Arduino)
by Balder_Andersen is licensed under the Creative Commons - Attribution license.
